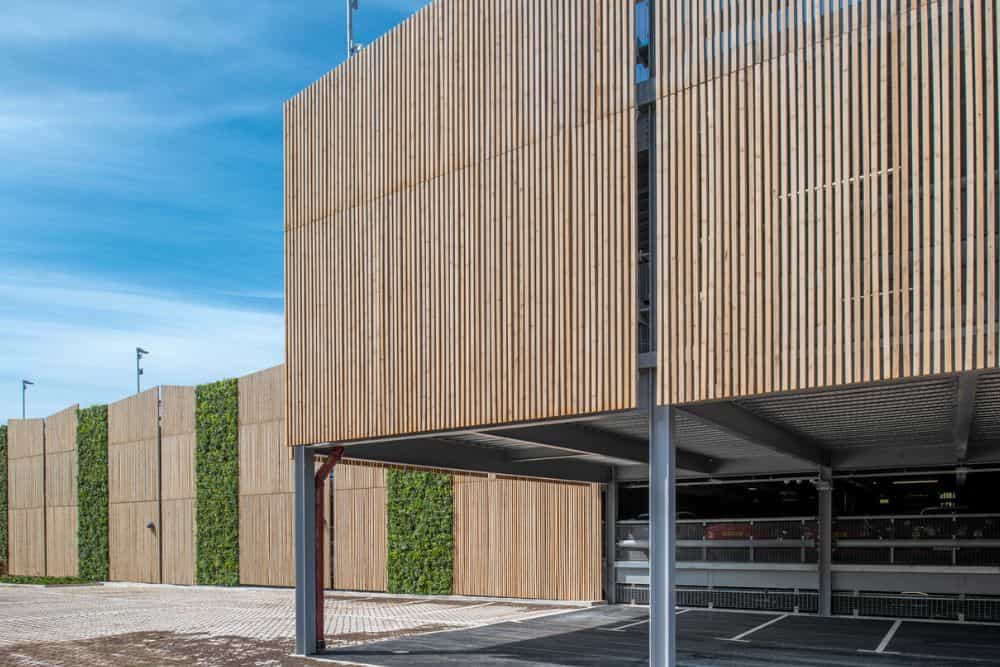

linear façade Christie mscp-min

A decorative façade that makes a striking visual impact

Linear façades are a good way to add an architectural feature to a building envelope. Each blade can be positioned vertically or horizontally. There is also a range of material specifications that can be used to align to your concept designs.

FEATURES

  • Flexible design and orientation - vertical or horizontal
  • Various material and finish specifications available (see blade options below)
  • Grade 6063 T6 extruded aluminum profiled blades can be set to desired pitch
  • Brackets fit curtain walling mullions
  • All fixings A2 stainless steel
  • Fitted by fully certified façade installers
  • Three-year manufacturer's warranty

blade options

Fin size
(AxB)mm
Rectangle
(Rc)
Elliptical
(El)
Aluminium
(Al)
Perforated
(Perf)
Timber
(Ti)
Glass
(Gl)
Perspex
(Pe)
190 x 40 checked symbol checked symbol checked symbol
240 x 40 checked symbol checked symbol checked symbol
280 x 40 checked symbol checked symbol checked symbol
300 x 6 checked symbol checked symbol
400 x 6 checked symbol checked symbol
500 x 6 checked symbol checked symbol
250 x 50 checked symbol checked symbol checked symbol checked symbol
300 x 50 checked symbol checked symbol checked symbol checked symbol
400 x 50 checked symbol checked symbol checked symbol checked symbol
500 x 70 checked symbol checked symbol checked symbol checked symbol
600 x 70 checked symbol checked symbol checked symbol checked symbol
300 x 17.5 checked symbol
400 x 17.5 checked symbol
500 x 17.5 checked symbol
200 x 12 checked symbol
300 x 12 checked symbol



Download the Architectural Facade Brochure
