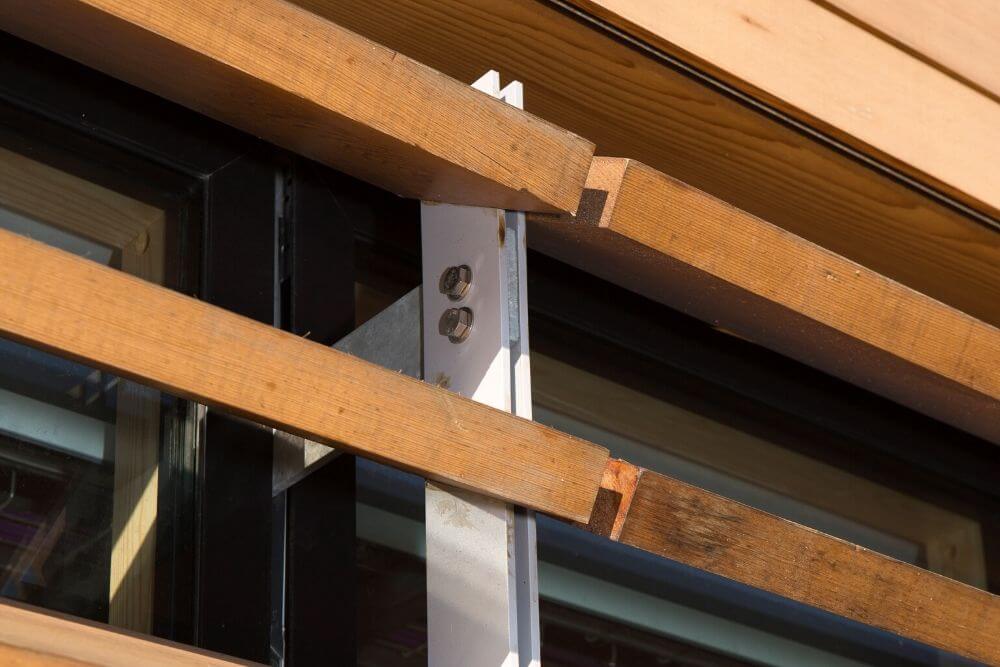

  • BARNSLEY COLLEGE_COLLEGE_CLIMATE FACADES-CORONA-SQUARE BLADE_PRO_SOUTH YORKSHIRE_4STAR (12)-edited 3.jpg

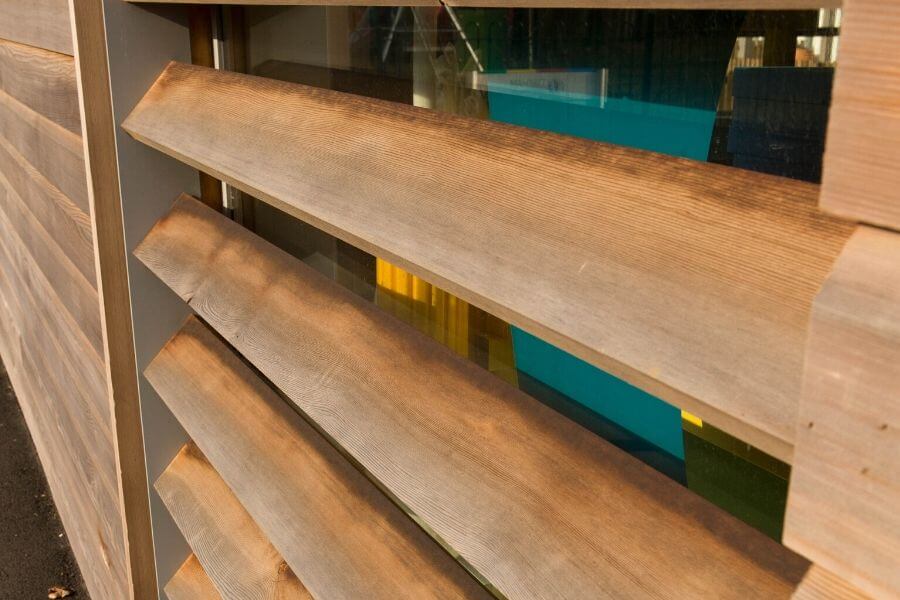

  • OAKHAM PRIMARY SCHOOL_SCHOOL_CLIMATE FACADES-CORONA-SQUARE BLADE_PRO_OAKHAM_4STAR (11)-edited 3 by 2.jpg

A rectangular shaped blade

The Corona climate façade concept is built on an intelligent thermal model. Air circulates behind the façade louvres to create a movement of cool air that crosses the glazed area. The resulting 'cooling' effect reduces solar gain in the interior of the building. The system is available with solid or perforated, timber and motor driven blades.

FEATURES

  • Advanced architectural blades with vertical support structure
  • Blade sizes between 100mm and 1,200mm
  • Concealed fixings
  • Strong structural design for longer span lengths
  • Cassette brise soleil system for off-site build and more efficient installation
  • Aluminium, timber and perforated louvre blade options
  • Motor driven blade options available
  • Various material and finish specifications available (see blade options below)
  • Grade 6063 T6 extruded aluminium profiled blades can be set to desired pitch
  • Support structure delivers a seamless alignment
  • Brackets fit curtain walling mullions
  • All fixings A2 stainless steel
  • Fitted by fully certified façade installers
  • Three-year manufacturer's warranty

blade options

Blade size
(AxB)mm
Cassette
(C)
Standard
(S)
Suspense
(Su)
Solo
(So)
Motion
(M)
Aluminium
(Al)
Timber
(Ti)
100 x 20 checked symbol checked symbol checked symbol checked symbol checked symbol checked symbol
180 x 32 checked symbol checked symbol checked symbol checked symbol checked symbol checked symbol
200 x 32 checked symbol checked symbol checked symbol checked symbol checked symbol checked symbol
250 x 40 checked symbol checked symbol checked symbol checked symbol checked symbol checked symbol
300 x 50 checked symbol checked symbol checked symbol checked symbol checked symbol checked symbol checked symbol
400 x 50 checked symbol checked symbol checked symbol checked symbol checked symbol checked symbol
500 x 60 checked symbol checked symbol checked symbol checked symbol checked symbol checked symbol
600 x 75 checked symbol checked symbol checked symbol checked symbol
700 x 170 checked symbol checked symbol checked symbol checked symbol
800 x 120 checked symbol checked symbol checked symbol checked symbol
