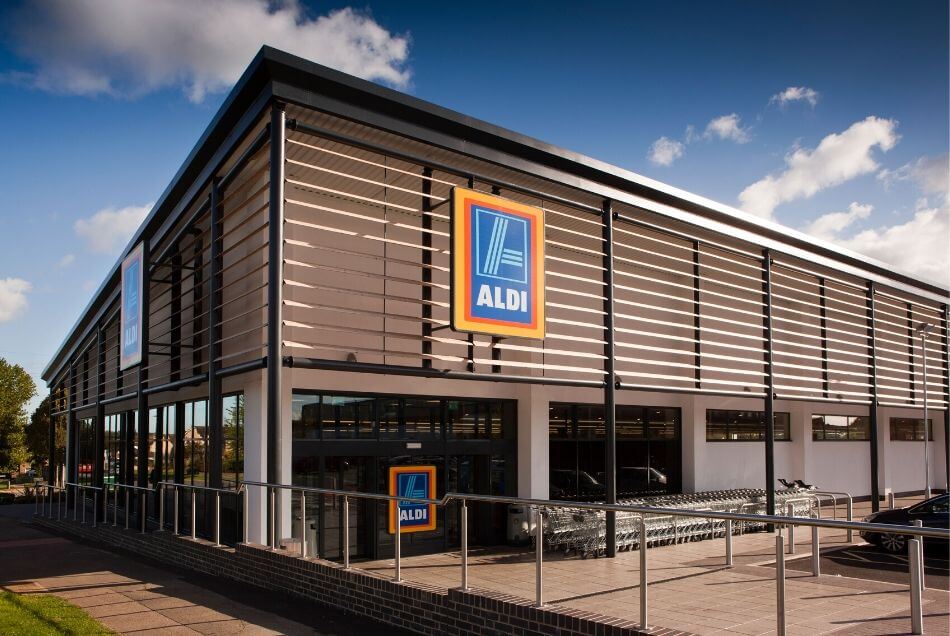

  • ALDI_RETAIL_CLIMATE FACADES - AURORA - ELLIPTICAL BLADE_STD_BEDFORD_4STAR (1).jpg

A decorative façade that makes a striking visual impact

The Aurora climate façade concept is built on an intelligent thermal model. Air circulates behind the façade louvres to create a movement of cool air that crosses the glazed area. The resulting 'cooling' effect reduces solar gain in the interior of the building. The system is available with solid or perforated, timber and motor driven blades.

FEATURES

  • Advanced architectural aerofoil blade with vertical support structures
  • Blade size between 100mm and 1,200mm
  • Concealed fixings
  • Strong structural design for longer span lengths
  • Cassette brise soleil system for off-site build and more efficient installation
  • Aluminium, timber and perforated louvre blade options
  • Motor driven blade options available
  • Various material and finish specifications available (see blade options below)
  • Grade 6063 T6 extruded aluminum profiled blades can be set to desired pitch
  • Brackets fit curtain walling mullions
  • All fixings A2 stainless steel
  • Fitted by fully certified façade installers
  • Three-year manufacturer's warranty

blade options

Specification Blade size
(AxB)mm
Cassette
(C)
Standard
(S)
Suspense
(Su)
Solo
(So)
Motion
(M)
Aluminium
(Al)
Perforated
(Perf)
Timber
(Ti)
CF Aurora 100 100 x 20 checked symbol checked symbol checked symbol checked symbol checked symbol checked symbol
CF Aurora 180 180 x 32 checked symbol checked symbol checked symbol checked symbol checked symbol checked symbol
CF Aurora 200 200 x 32 checked symbol checked symbol checked symbol checked symbol checked symbol checked symbol
CF Aurora 250 250 x 40 checked symbol checked symbol checked symbol checked symbol checked symbol checked symbol
CF Aurora 300 300 x 50 checked symbol checked symbol checked symbol checked symbol checked symbol checked symbol checked symbol
CF Aurora 400 400 x 50 checked symbol checked symbol checked symbol checked symbol checked symbol checked symbol checked symbol
CF Aurora 500 500 x 60 checked symbol checked symbol checked symbol checked symbol checked symbol checked symbol
CF Aurora 600 600 x 75 checked symbol checked symbol checked symbol checked symbol checked symbol
CF Aurora 700 700 x 170 checked symbol checked symbol checked symbol checked symbol checked symbol
CF Aurora 800 800 x 120 checked symbol checked symbol checked symbol checked symbol checked symbol
CF Aurora 1000 1000 x 150 checked symbol checked symbol checked symbol checked symbol checked symbol
CF Aurora 1200 1200 x 150 checked symbol checked symbol checked symbol checked symbol checked symbol



Climate Facade Brochure
