configure the projection to suit design requirements

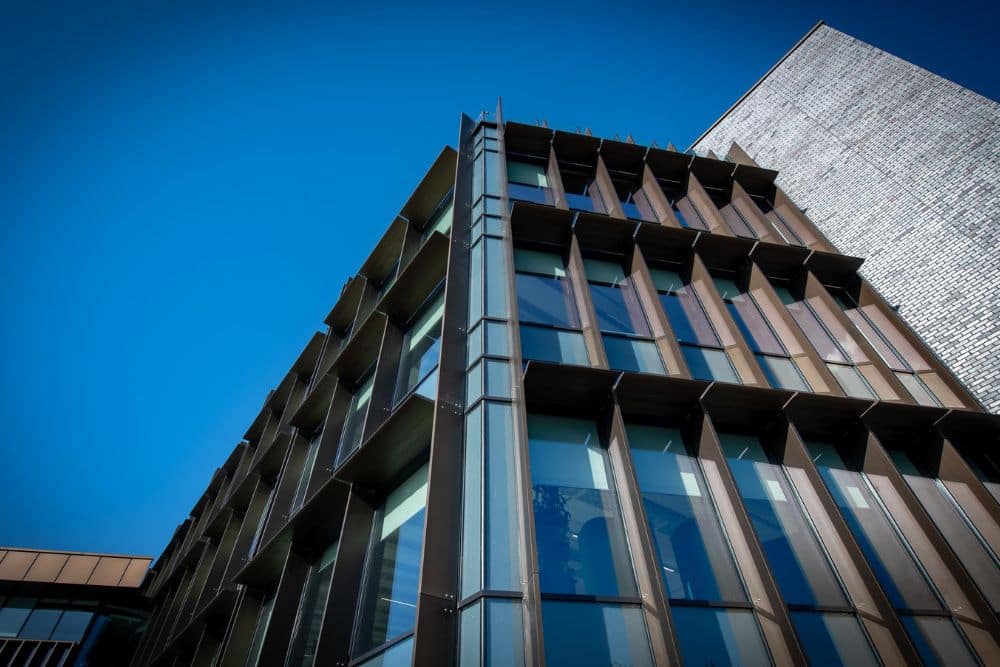

The Strata lightshelf system combines the solar shading qualities of a brise soleil system with a modular design to adjust the projection from the building envelope. Our Strata lightshelf is a solid shelf design that can be used as a canopy or soffit feature. Blade sizes range between 100mm and 900mm, and are all fitted by Maple approved installers.

FEATURES

  • An effective shelf or soffit feature brise soleil
  • Various blade sizes from 100mm to 900mm
  • Grade 6063 T6 extruded aluminium profiled blades can be set to desired pitch
  • Brackets fit curtain walling mullions
  • All fixings A2 stainless steel
  • Fitted by fully certified façade installers
  • Three-year manufacturer's warranty

blade options

Blade size
(AxB)mm
Lightshelf
(SL)
Aluminium
(Al)
100 x 50 checked symbol checked symbol
360 x 50 checked symbol checked symbol
540 x 50 checked symbol checked symbol
720 x 50 checked symbol checked symbol
900 x 50 checked symbol checked symbol
