vertical or angled blades for bespoke façade design

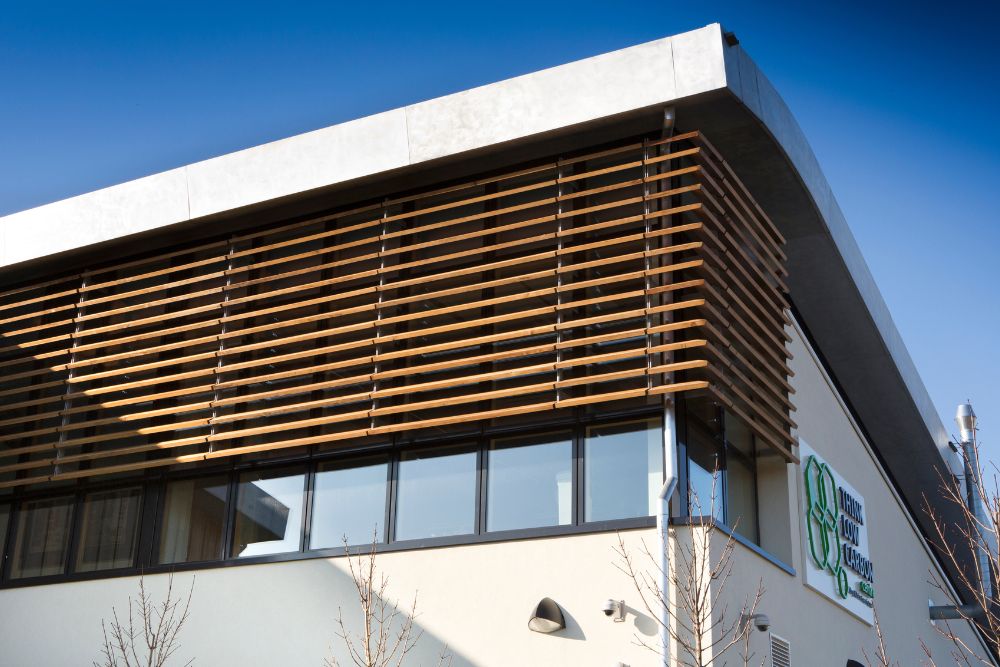

Maple’s Strata Corona brise soleil system is made up of rectangular timber or aluminium blades, which can be angled for bespoke design or specific shading requirements. Advanced fixings and supports ensure seamless alignment for aesthetic as well as practical results.

FEATURES

  • Rectangular blades angled or vertically positioned
  • Various blade sizes available
  • Cassette brise soleil system for off-site build and more efficient installation
  • Grade 6063 T6 extruded aluminium profiled blades can be set to desired pitch
  • Brackets fit curtain walling mullions
  • All fixings A2 stainless steel
  • Fitted by fully certified façade installers
  • Three-year manufacturer’s warranty
Blade size
(AxB)mm
Cassette
(C)
Standard
(S)
Aluminium
(Al)
Timber
(Ti)
100 x 50 checked symbol checked symbol checked symbol checked symbol
140 x 20 checked symbol checked symbol checked symbol checked symbol
150 x 50 checked symbol checked symbol checked symbol checked symbol
160 x 18 checked symbol checked symbol checked symbol checked symbol
200 x 50 checked symbol checked symbol checked symbol checked symbol
300 x 50 checked symbol checked symbol checked symbol checked symbol
400 x 50 checked symbol checked symbol checked symbol checked symbol
540 x 50 checked symbol checked symbol
720 x 50 checked symbol checked symbol
900 x 50 checked symbol checked symbol



Brise Soleil Brochure
