advanced Architectural aerofoil façade

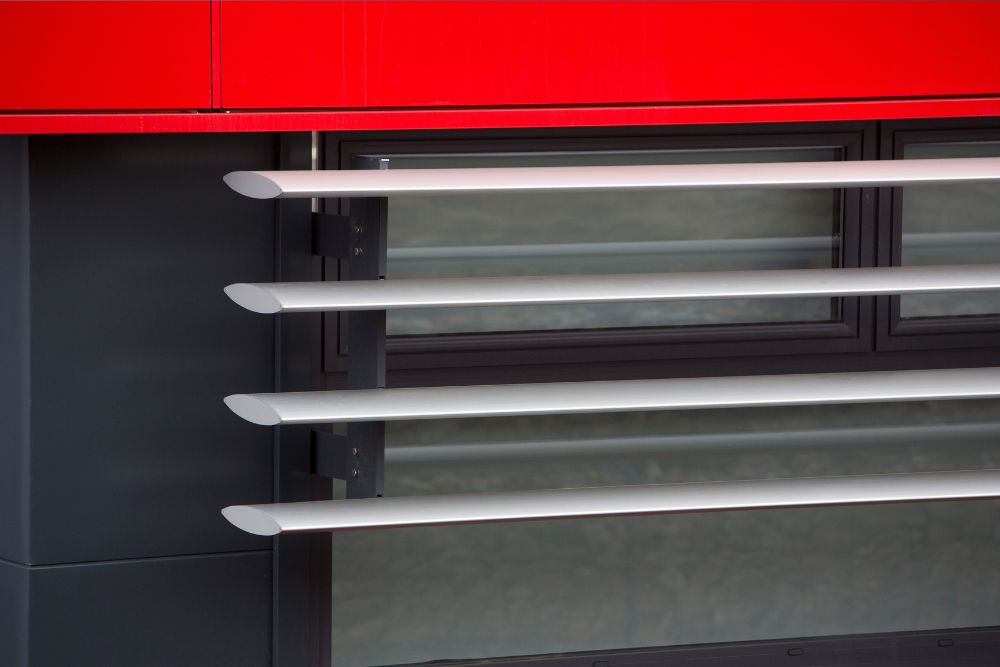

Maple’s Aurora brise soleil system provides effective solar shading as well as visual impact on a range of glazed buildings. Based on horizontal aerofoil blades, the system incorporates strong structural design and concealed fixings to provide seamless lines across long spans. Blades (between 100mm and 1,200mm wide) are available in aluminium or timber, and can be provided in modular cassette form for efficient off-site construction.

FEATURES

  • Advanced architectural aerofoil blades
  • Blade size from 100mm to 1,200mm
  • Concealed fixings
  • Strong structural design for longer span lengths
  • Cassette brise soleil system for off-site build and more efficient installation
  • Aluminium, timber and perforated louvre blade options
  • Motor driven blade options
  • Grade 6063 T6 extruded aluminium profiled blades can be set to desired pitch
  • Brackets fit curtain walling mullions
  • All fixings A2 stainless steel
  • Fitted by fully certified façade fitters
  • Three-year manufacturer's warranty

blade options

Specification Blade size
(AxB)mm
Cassette
(C)
Standard
(S)
Aluminium
(Al)
Perforated
(Perf)
Timber
(Ti)
ST Aurora 100 100 x 20 checked symbol checked symbol checked symbol checked symbol
ST Aurora 180 180 x 32 checked symbol checked symbol checked symbol checked symbol
ST Aurora 200 200 x 32 checked symbol checked symbol checked symbol checked symbol
ST Aurora 250 250 x 40 checked symbol checked symbol checked symbol checked symbol
ST Aurora 300 300 x 50 checked symbol checked symbol checked symbol checked symbol checked symbol
ST Aurora 400 400 x 50 checked symbol checked symbol checked symbol checked symbol checked symbol
ST Aurora 500 500 x 60 checked symbol checked symbol checked symbol checked symbol checked symbol
ST Aurora 600 600 x 75 checked symbol checked symbol checked symbol
ST Aurora 700 700 x 170 checked symbol checked symbol checked symbol
ST Aurora 800 800 x 120 checked symbol checked symbol checked symbol
ST Aurora 1000 1000 x 150 checked symbol checked symbol checked symbol
ST Aurora 1200 1200 x 150 checked symbol checked symbol checked symbol
